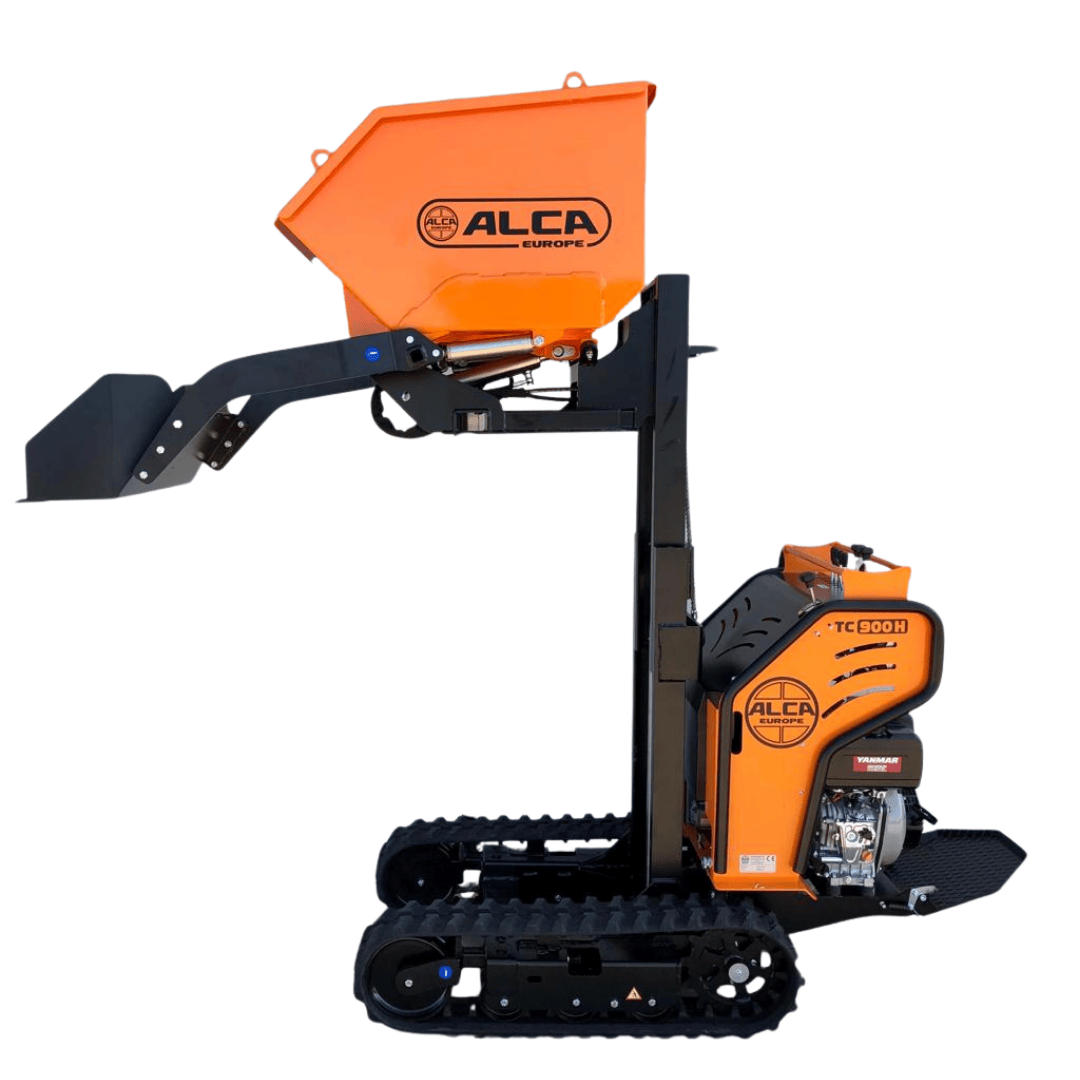

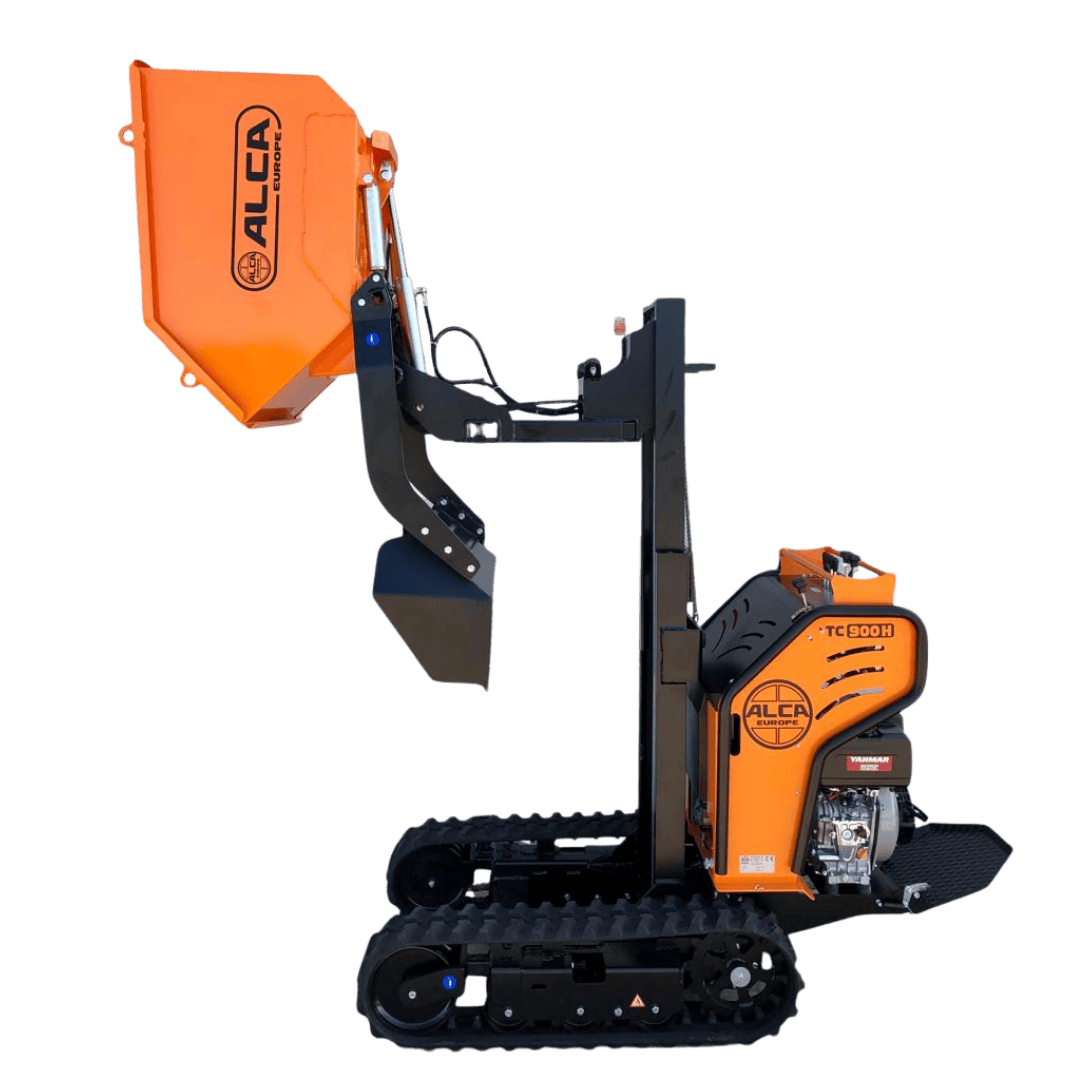

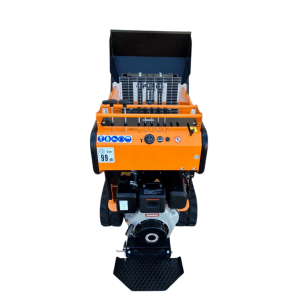

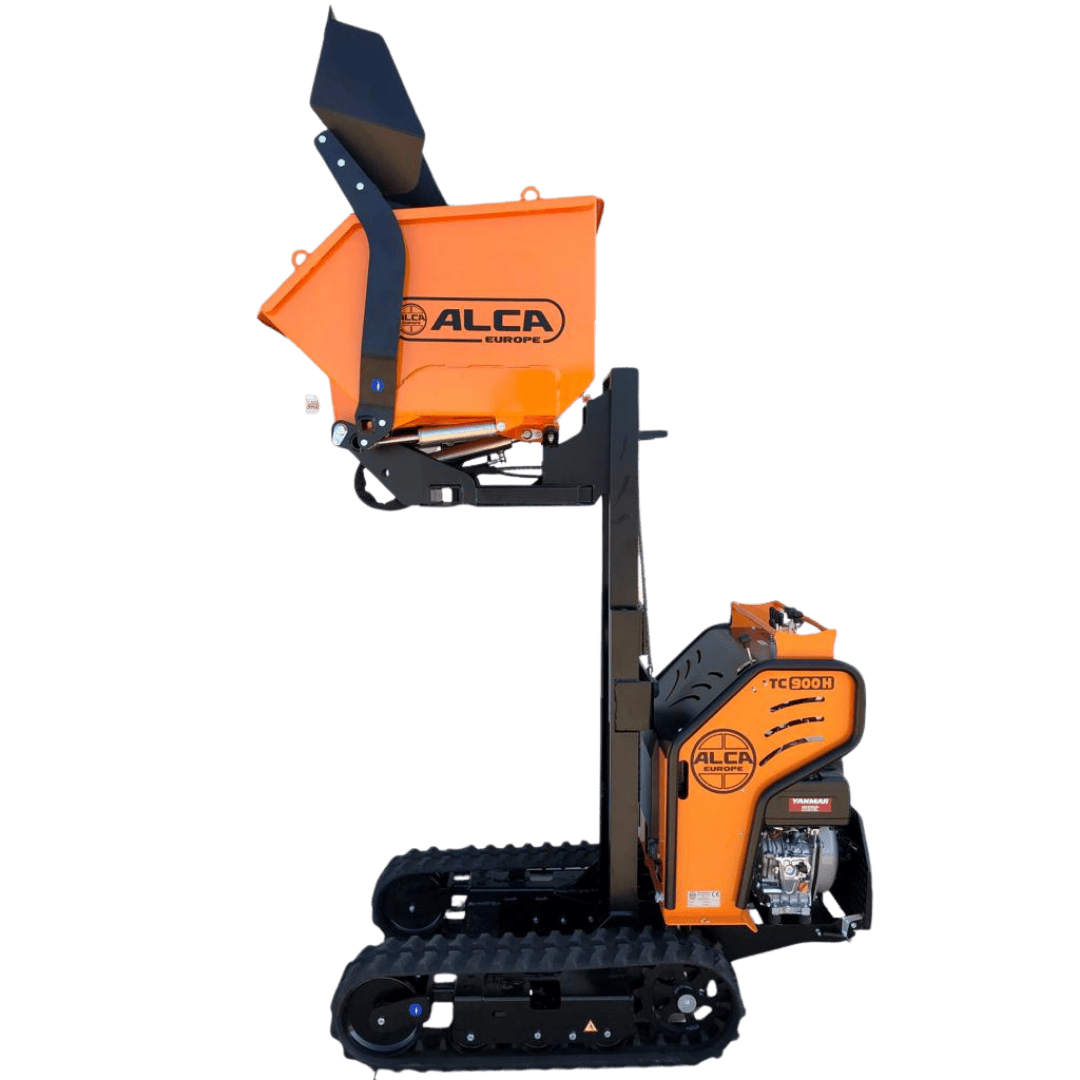

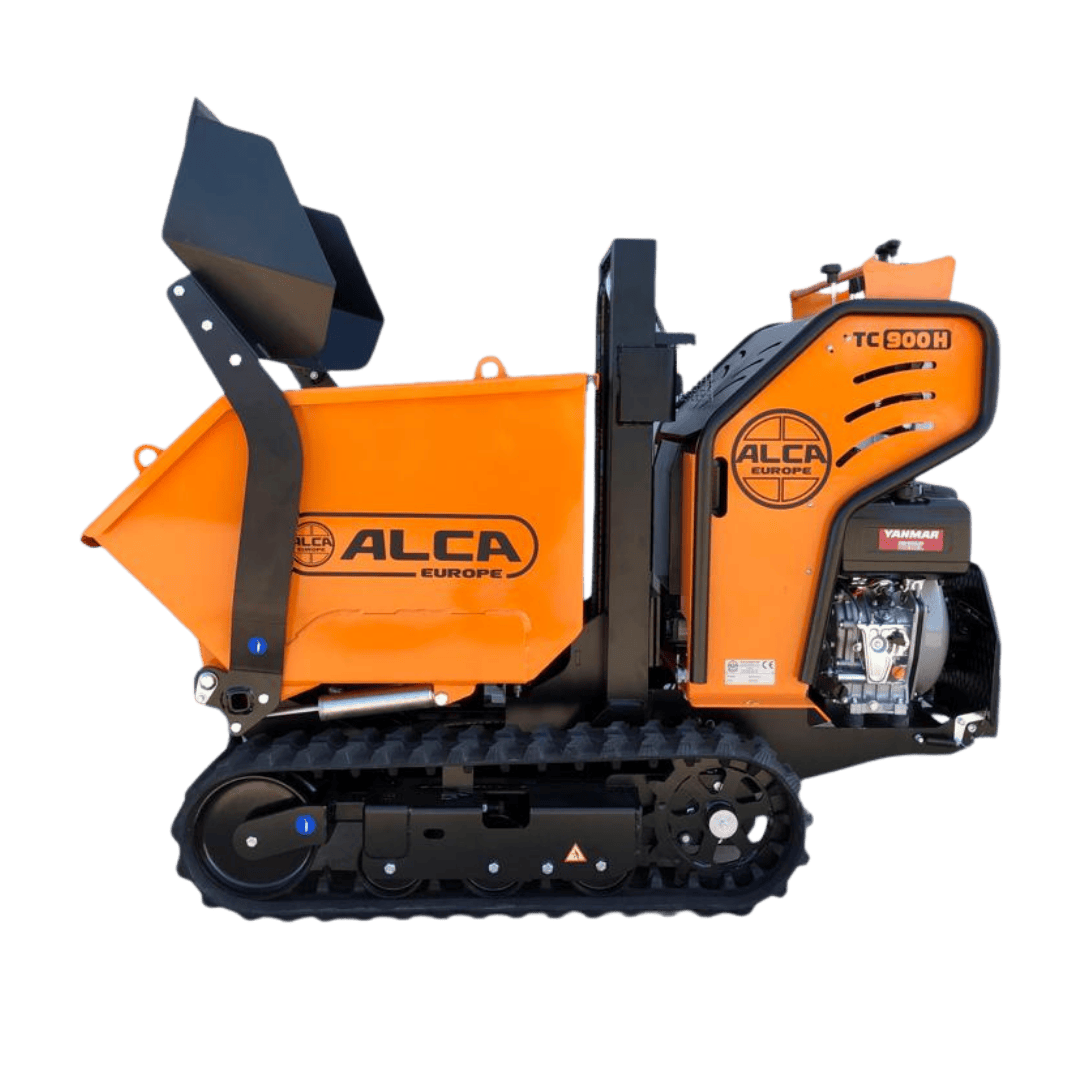

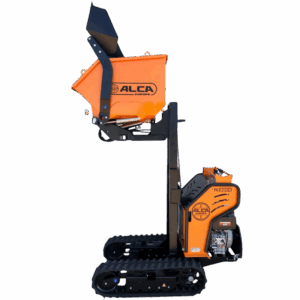

Combining movement and management of all uses at the same time is what sets the TC900H apart. This machine, the top of the H series range, allows you to move around freely while keeping everything under control, so you don’t waste a single minute on site.

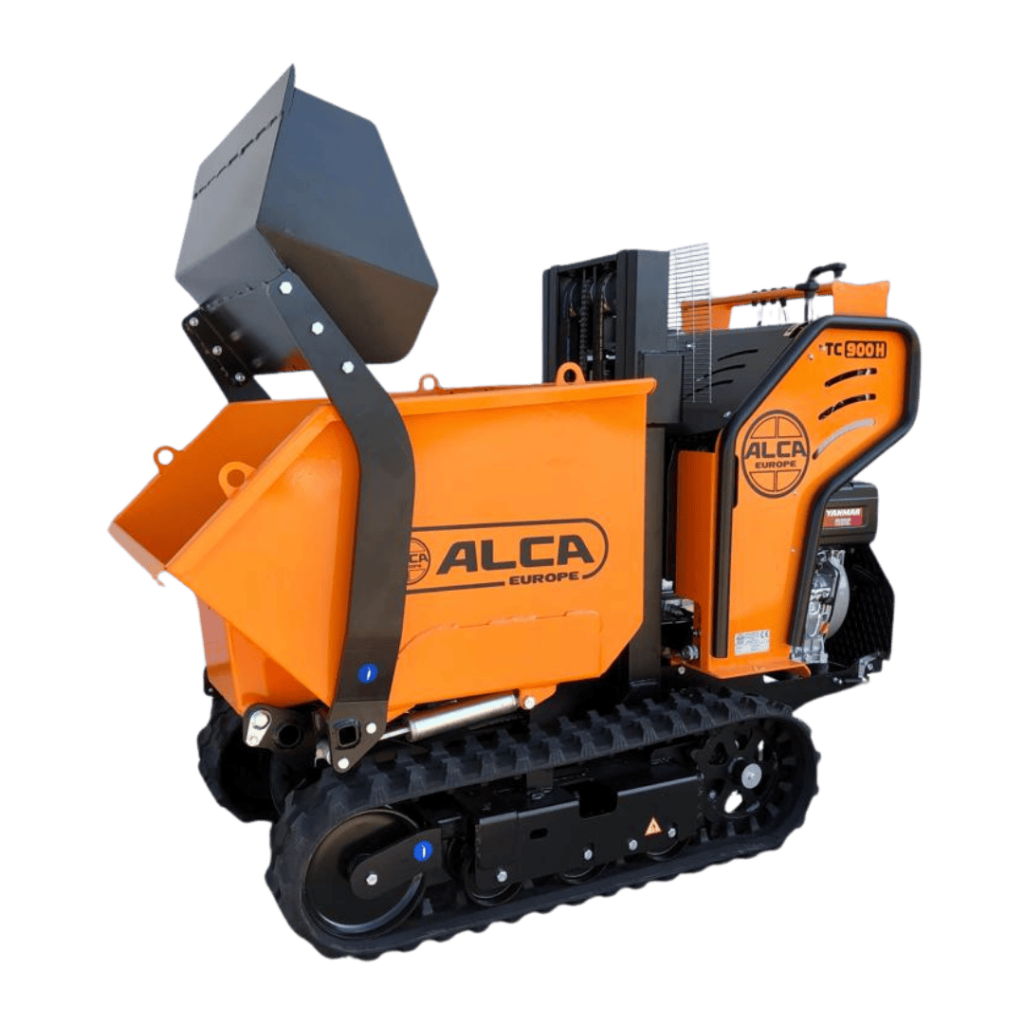

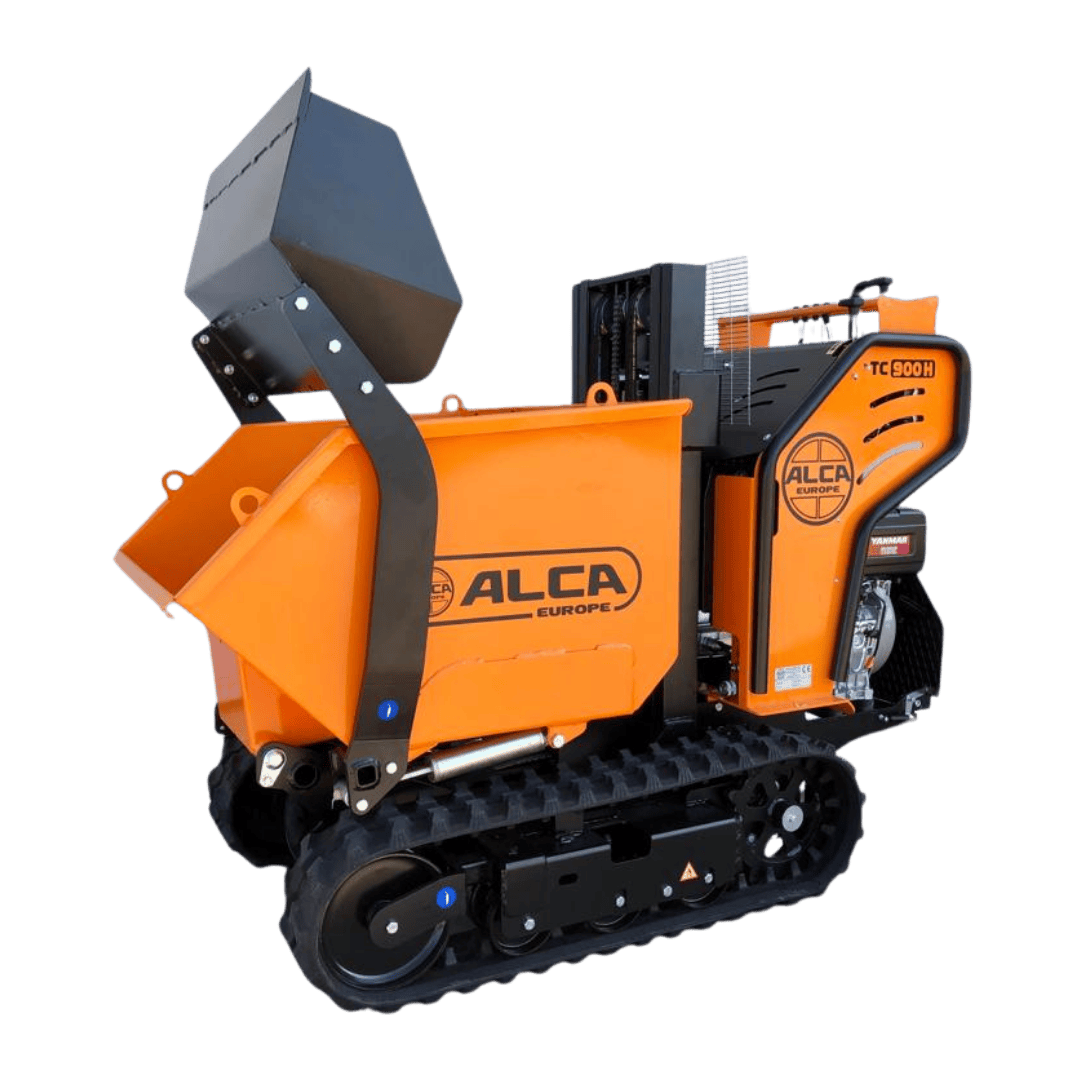

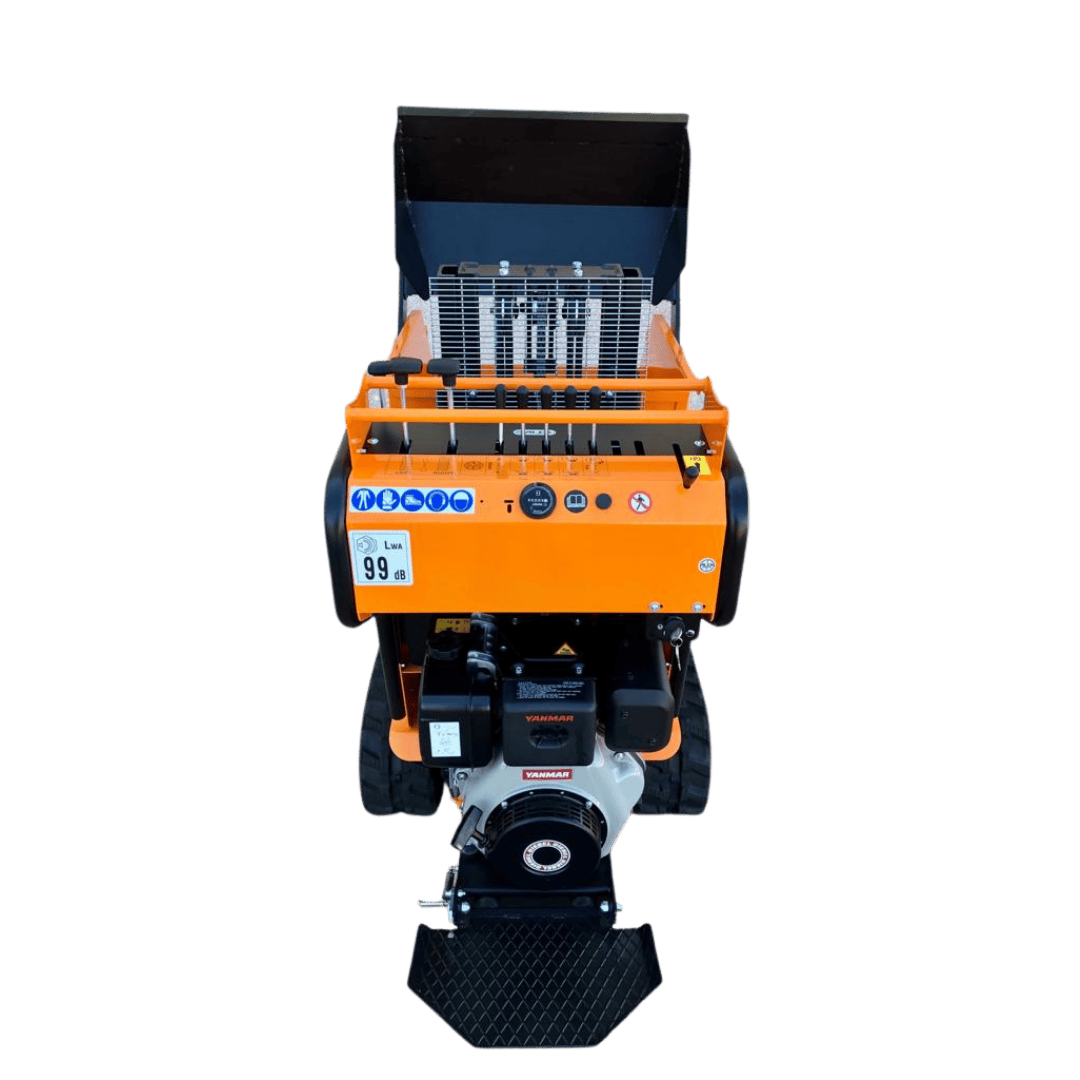

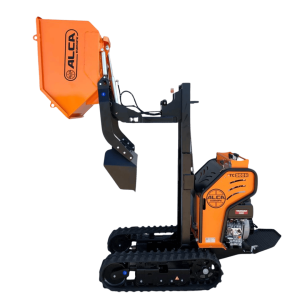

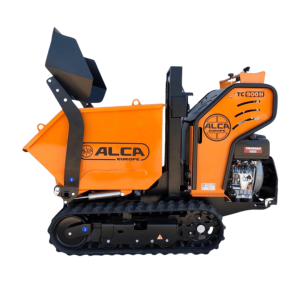

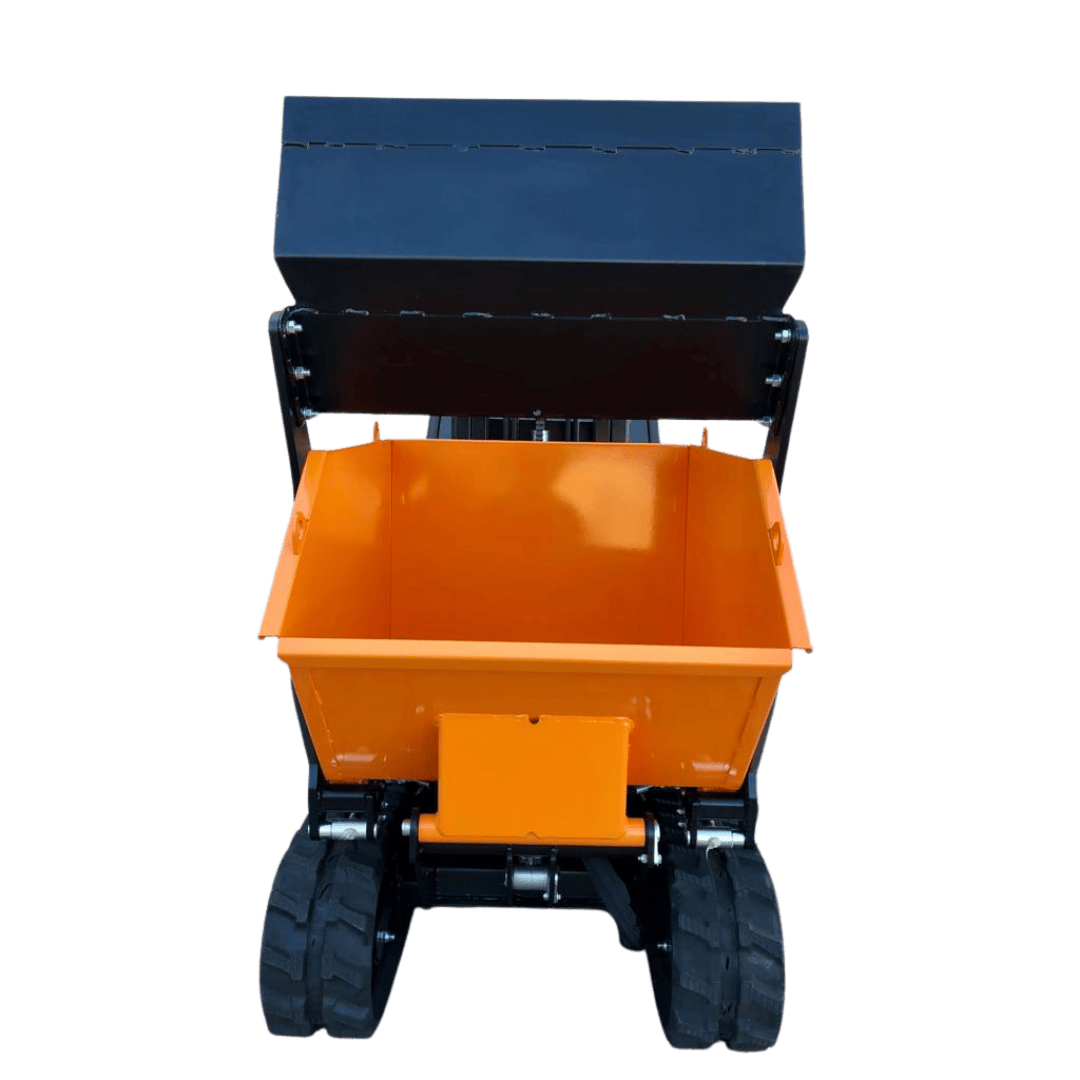

TC 900H
Compatible accessories
Front Blade
Dump platform agriculture / construction
Cement Mixer Support Legs
Cement Mixer 150LT
Cement Mixer + Shovel 150LT
Cement Mixer 300LT
Cement Mixer + Shovel 300LT
Dumper TC850
Dumper + Shovel TC850
Dumper + Tilting Loader
Undercarriage Extension TC900H
Forks 60
Technical specifications
| Operating capacity: | 800 kg |
| Engine: | Honda GX390, 4-stroke single cylinder OHV petrol engine Yanmar - L100, 4-stroke single cylinder diesel engine |
| Max power: | 8,7 kW (11,7 HP) - 6,8 kW (9,1 HP) |
| Dimensions: | 1571x780xH1286 mm |
| Hydraulic pumps: | 3 gear pumps |
| Transmission: | hydraulic |
| Speed: | 2 speed: 0-2,5 km/h ; 0-4,0 km/h |
| Max inclination: | 25° - 46% |
| Empty weight: | ~ 770 kg |
| Track width: | 180 mm |
| Hydraulic tipping: | standard |
| Max Lift Height: | 1500 mm |
| Starting: | electric |
| Overcenter valves: | standard |
| Variable width undercarriages: | optional |
| Operator platform: | standard |
